Comp HiLo Frame

  • Sale
  • Regular price $ 181.84




After the successful introduction of the Comp TR3, the Comp hilo could not wait any longer. The hilo concept is still popular for anyone looking for more stability by being lower to the ground, but still wanting more speed with larger wheels. The hilo frames are especially popular with juniors and ladies.
The Comp hilo frame uses the same type of profile as the Comp TR3 which has already proven itself as a versatile, highly reliable, and affordable inline frame.

The best choice for female or junior inline skaters

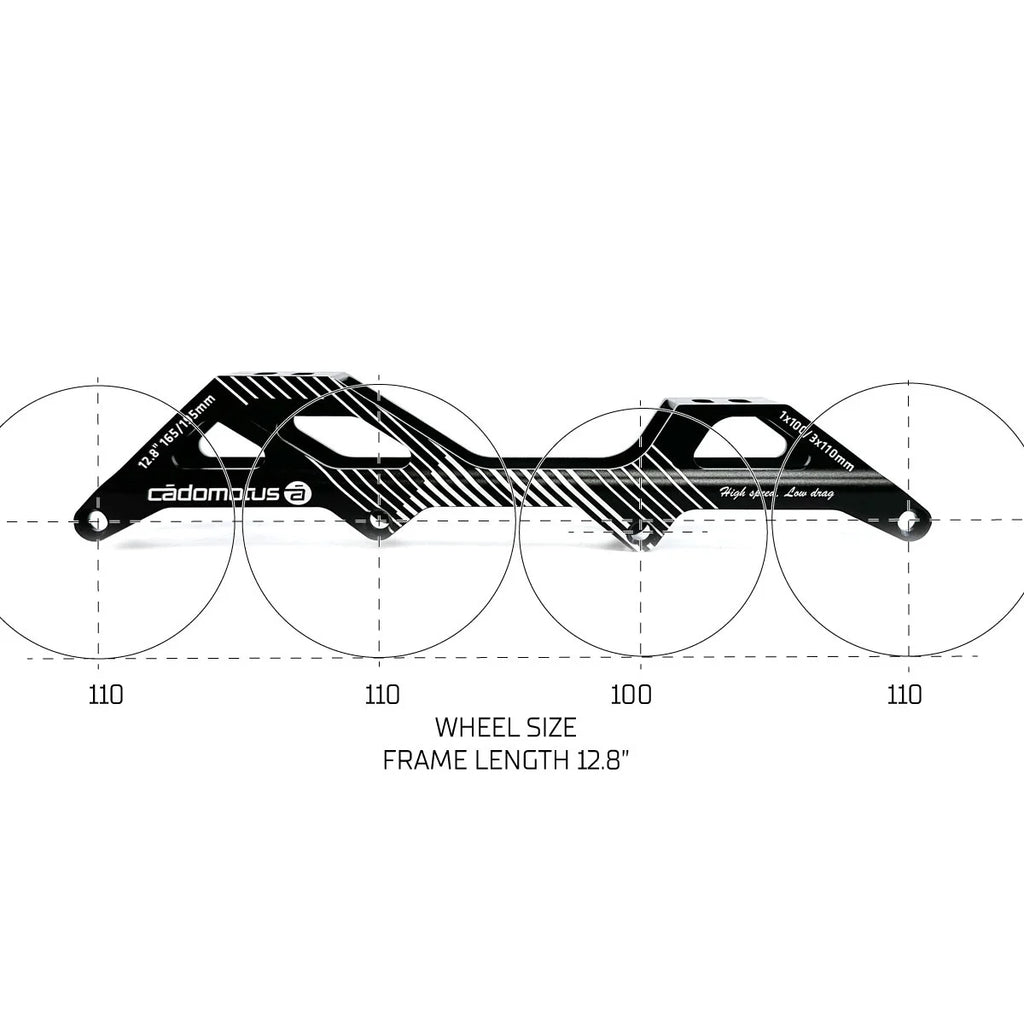

Because of the 100mm wheel under the forefoot, the skate is 10mm lower than for example a 4x110 skate. The three other wheels are 110mm which means you still experience the extra speed of a 110mm wheel compared to 100mm.

  • Ultra-low frame for more stability and better acceleration
  • Lower and faster than traditional 4-wheel configurations
  • More easy to handle set-up than 4x110 configurations.

Comp hilo inline frame line provides speed and agility



Technology that makes you faster

We use our experiential expertise to design, develop and produce the best skating equipment in the world.

Cádomotus frames are the ultimate balance between form and function. No gimmicks, just a sleek design. The profile of the Comp series is characterized by the kink that runs the entire length of the frame, giving it extra bending stiffness. Not too stiff, but not too flexible either. Actually just as much as you need to be able to steer your skate.

How can we make that so precise?
With the help of computer analysis.

Strength analyses on Cadomotus hilo frame

Cádomotus analyzes the mechanical and dynamic behavior of their inline frames using FEA analysis

Specifications
Wheel setup 100/110 hilo
Length (in) 12.4, 12.8
Weight (g) 210
Mount separation (mm) 195
Best screw length (mm) 14
Alloy 6061
Profile semi-solid
Pitch (mm)
Shim angle (°)
Spacer length (mm)
